INTREPID KM85

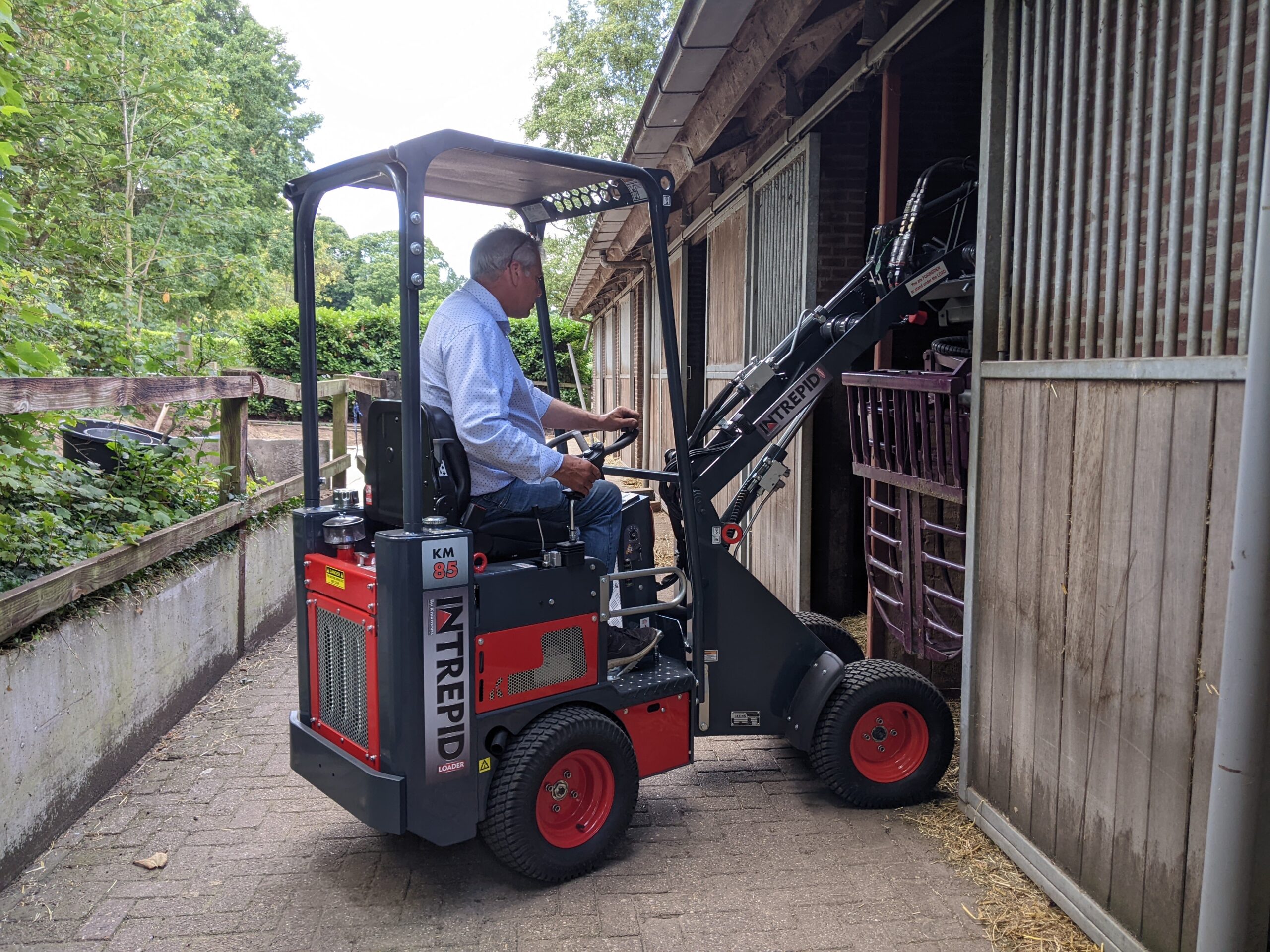

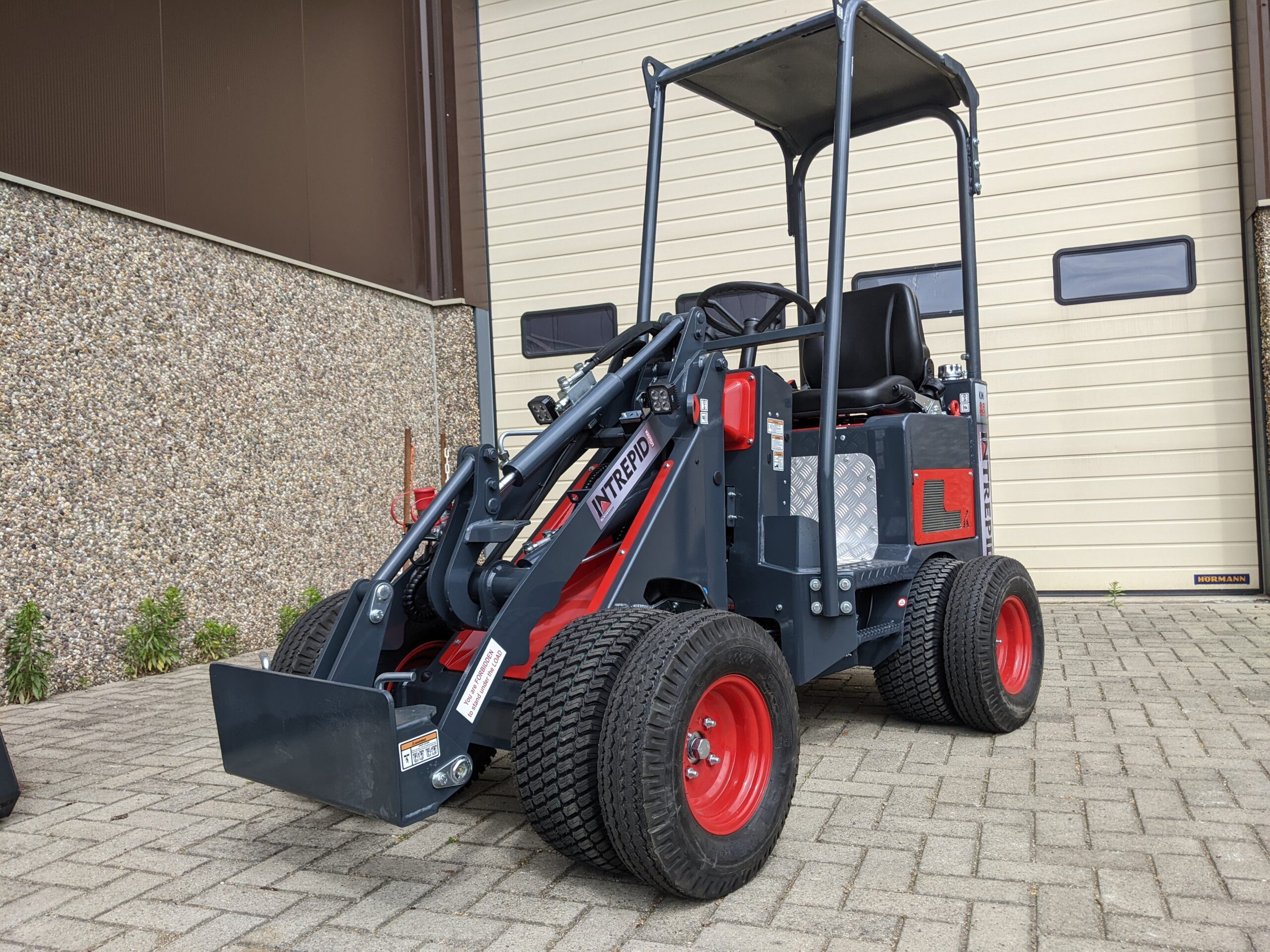

Intrepid KM85 mini articulating loader. Mini-skidsteer type hitch, high-quality Belgian manufacturing
Weight (no counterweights): 1970 lbs.
Engine: Kubota 23hp
Lifting capacity: 1540 lbs.
Lifting capacity, 20″ in front of wheels: 1000 lbs.
Driving speed: 0-8 mp/h
Lifting height (hinge point): 74.6 in. / 6.2 ft.

Description

Specifications
Engine:

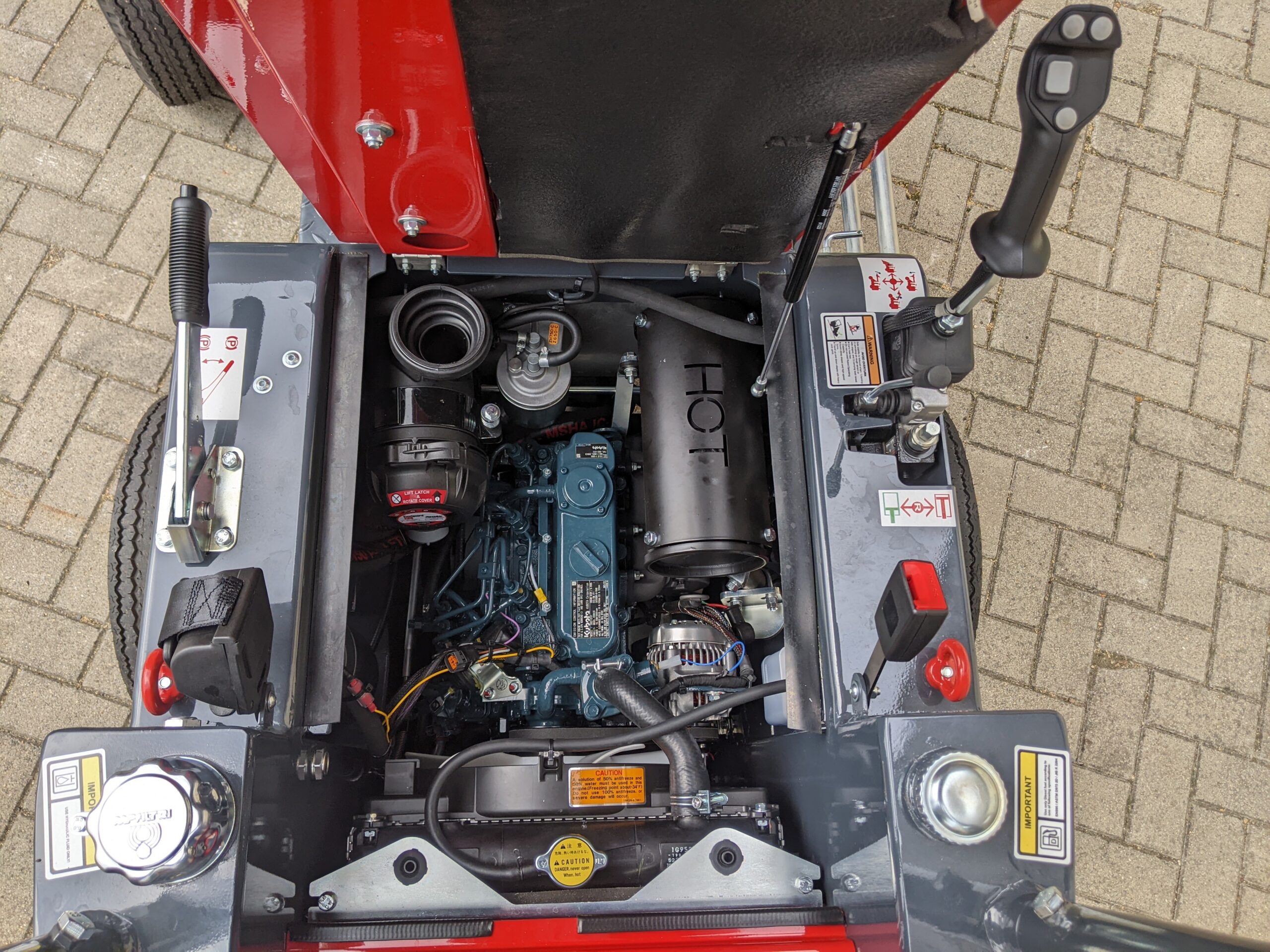

23HP Kubota (2 cyl. D902)
Service Weight:
1970 lbs.
Lifting capacity:
1540 lbs. (without counterweights)
Lifting capacity, 20″ in front of wheels:
1000 lbs.
Driving speed:
0-8 mp/h
Lifting height (hinge point):
74.6 in. / 6.2 ft.
Length without attachment:
98.4 in. / 8.2 ft.
Width:

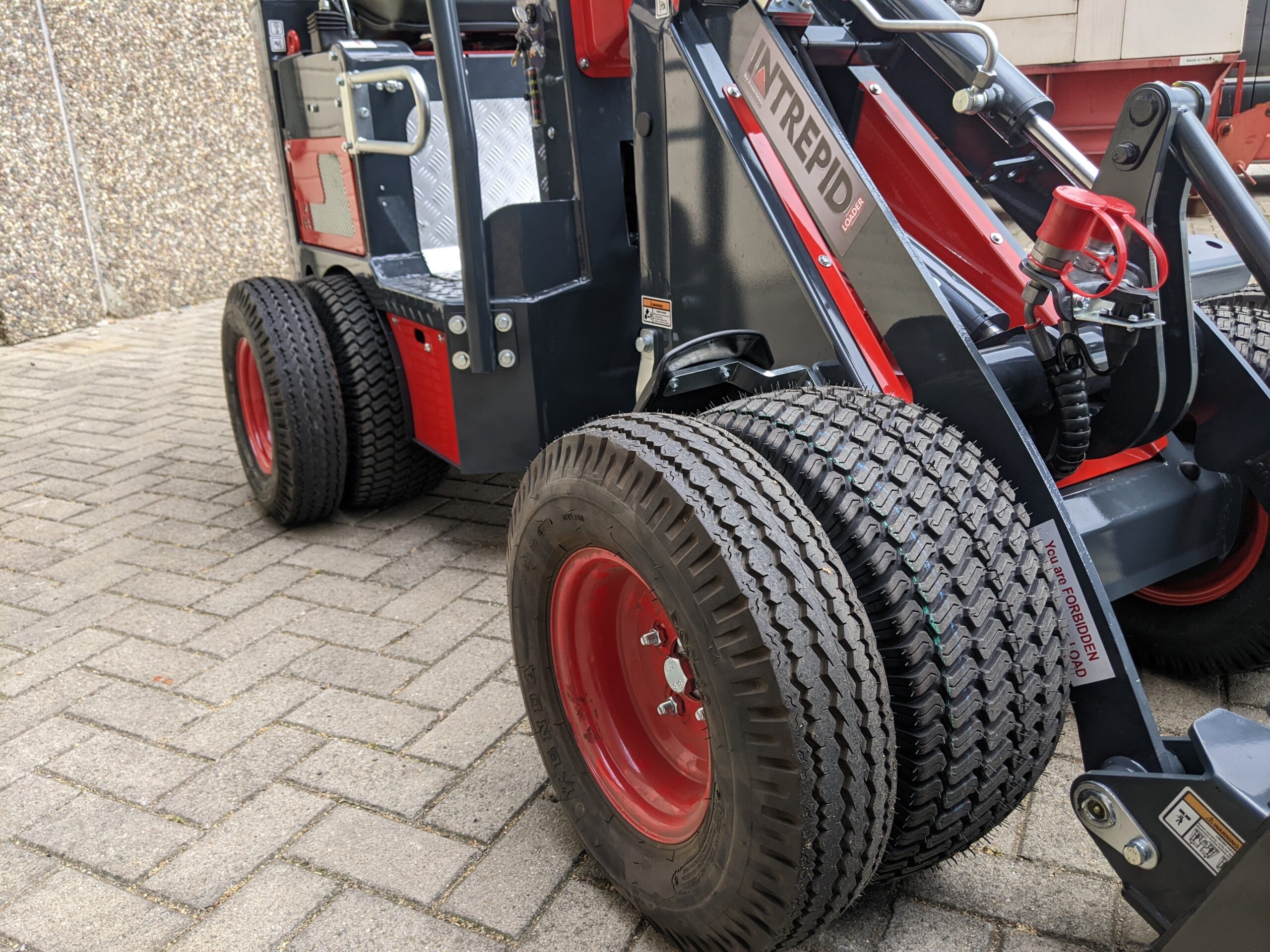

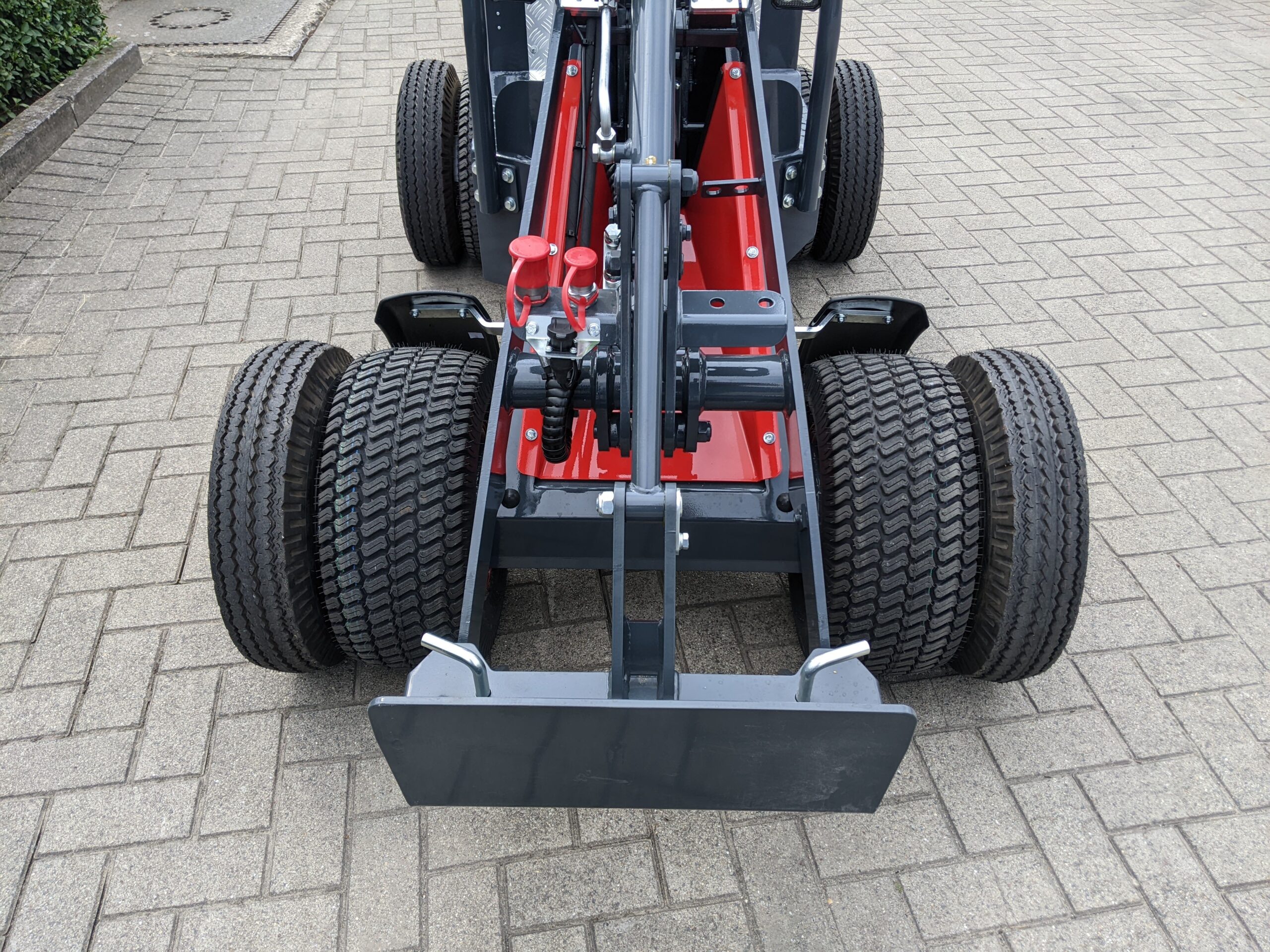

35.5 in. with outer wheels removed – 47.5 in. with outer wheels mounted
Driving hydraulics:
Hydraulic wheel-motors
Work hydraulics:
7.4 GPM / 2600 PSI

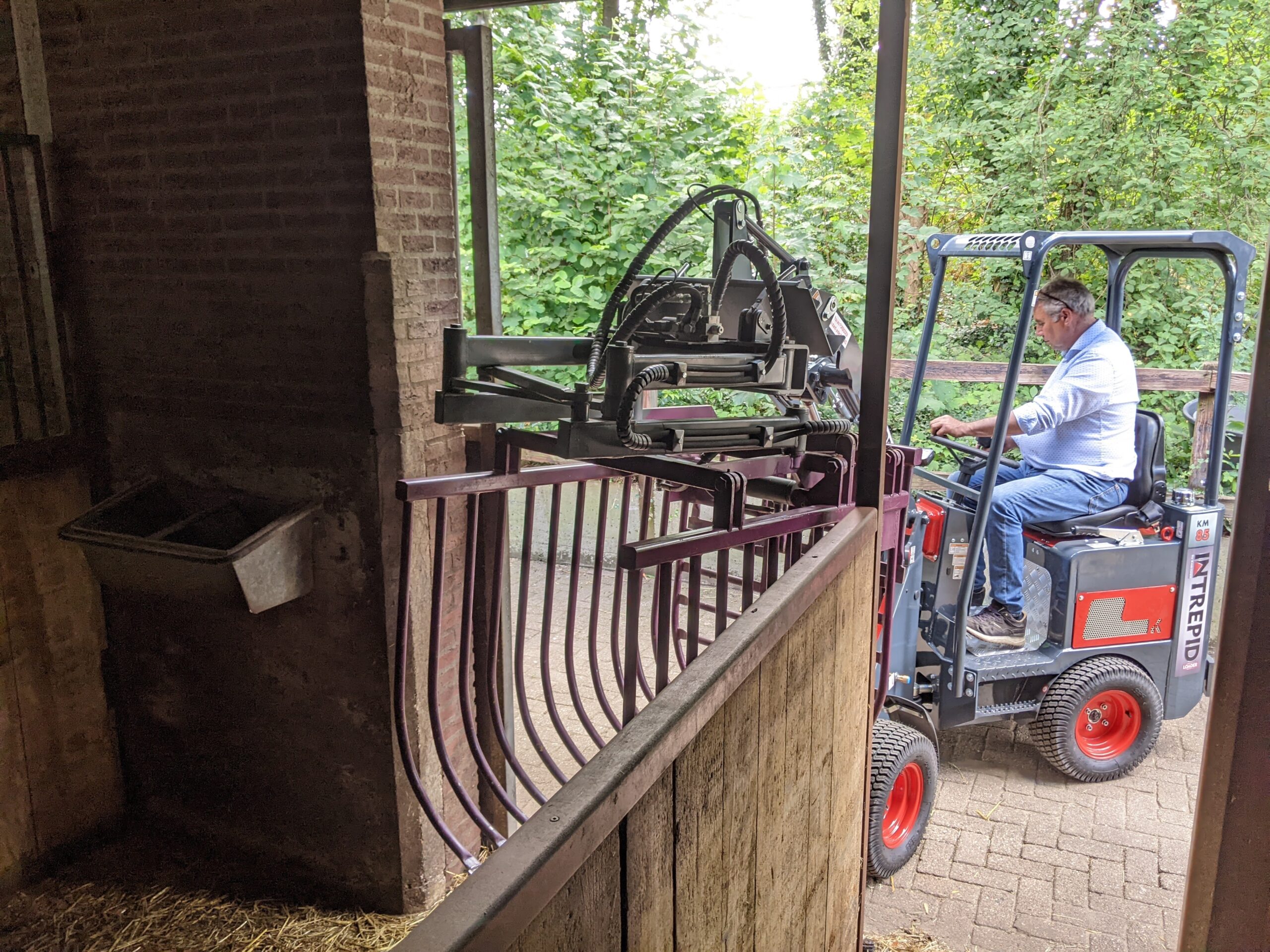

The Intrepid KM85 mini articulating loader is manufactured by Belgian manufacturer Knikmops. It is truly a one-of-a-kind loader given its extremely compact dimensions, configured to maneuver through small gates and passageways. Even though it’s one of the most compact articulating loaders available in the US, it still boasts an operating capacity of over 1000 lbs. It is faster and lifts more than many mini-skidsteer models. Above all, it has articulating steering, which results in near-zero impact on lawns and other sensitive areas.
